Purpose-built for Adventure
Epicore builds vehicles for your next adventure – not for camping holidays, but for action sports and outdoor missions. Whether you're into mountain biking, kiting, motocross, diving, or skiing - the Epicore Van is your basecamp, workshop, and transport - all in one.
Designed for maximum utility & gear logistics
Spacious room concept for more freedom of movement
Modular interior to convert your van around your activities.
Rapid packing & gear access enables spontaneous trips to parks, surf spots, mountain passes, and beyond.
Epicore M - Overview

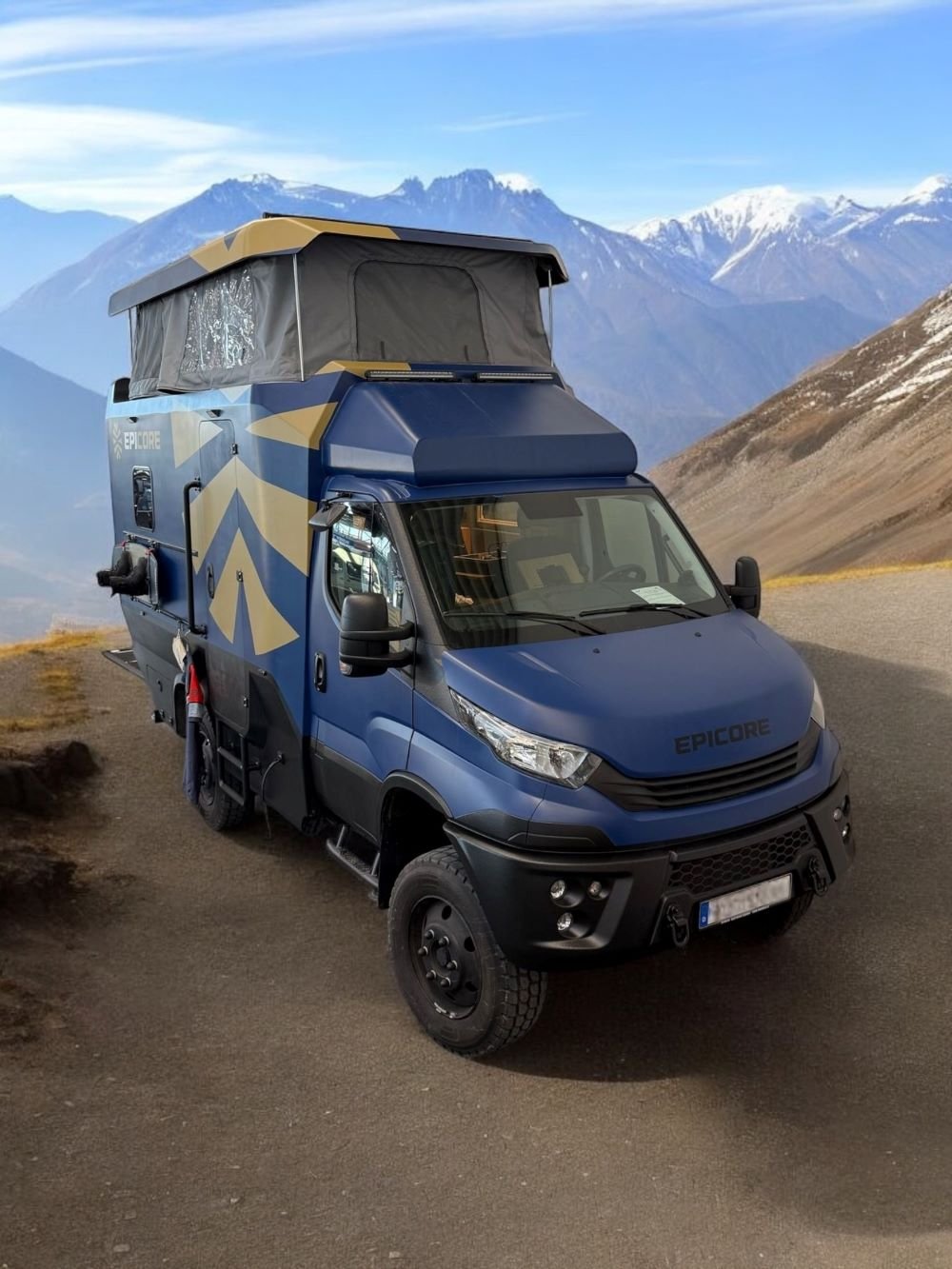

A rugged 7-ton expedition vehicle based on the IVECO Daily 4x4, with a full-length GFRP monocoque cabin, offroad chassis and modular configurations.
All-wheel drive, 180 HP Diesel, 8-speed automatic, off-road suspension
Hydraulic tail lift: comfortable loading-platform & height-adjustable terrace
Living space, workshop & office in one - can be divided in 2 separate rooms
hydraulic roof top tent with sleeping space for up to 4 athletes
XL rear garage with plenty of storage and mounting options for your gear
Base Vehicle & Bodywork
A rugged 7-ton expedition vehicle based on the IVECO Daily 4x4 - all-wheel drive with front and rear axle differential locks, offroad chassis and shock absorbers - takes you directly to where your adventure begins. The cabin consists of a full-length GFRP monocoque - highly durable and flexible at the same time - providing a continuous link with the driver's cab & giving the van its sporty appeal.

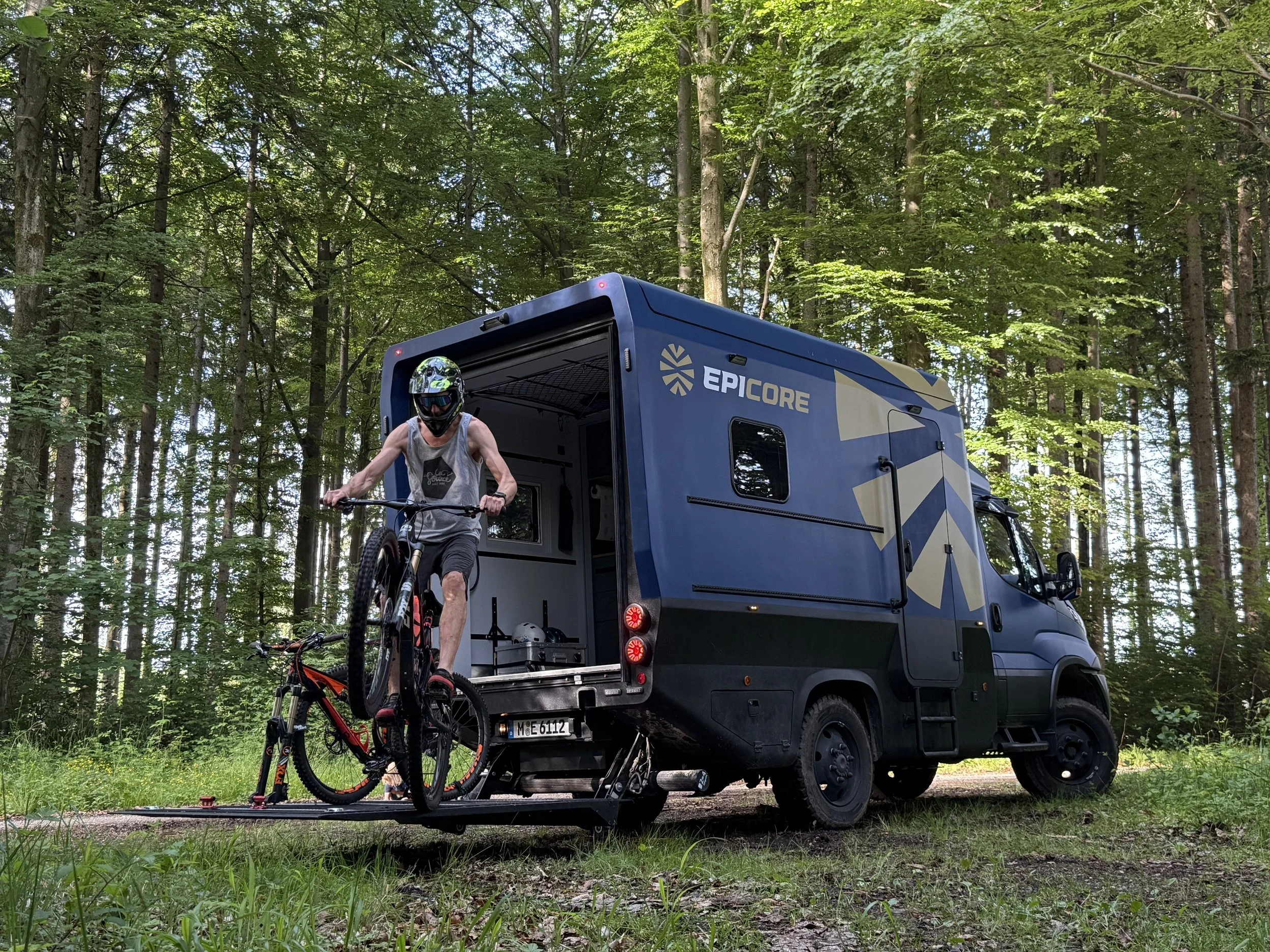

Hydraulic Lift
The rear hydraulic lift is a game changer for action sports and outdoor travel. It transforms from loading platform to clean, elevated terrace in seconds — no more muddy ground, awkward lifting, or unpacking in the rain. Whether you're mounting bikes, prepping gear, or just relaxing after a session, this feature adds serious utility and comfort where most vans compromise. Water sports enthusiasts can drive directly to the water's edge and use the platform as a pier.
Rear Garage
More than just storage, the rear garage is a true operations zone. It's big enough to rinse, dry, and repair your gear without ever stepping outside — perfect after muddy trails or cold surf sessions. Separate heating, smart drainage, and rock-solid security turn this space into a professional-grade utility room on wheels.
Hydraulic Roof Top Tent
Sleeping in the EpicoreVan feels like being in a cozy alpine hut — just elevated, heated, and with a better view. The roof tent opens up to light and air during the day and transforms into a warm retreat at night, insulated against the cold. It’s not just about where you sleep — it’s about waking up already in the middle of the action.

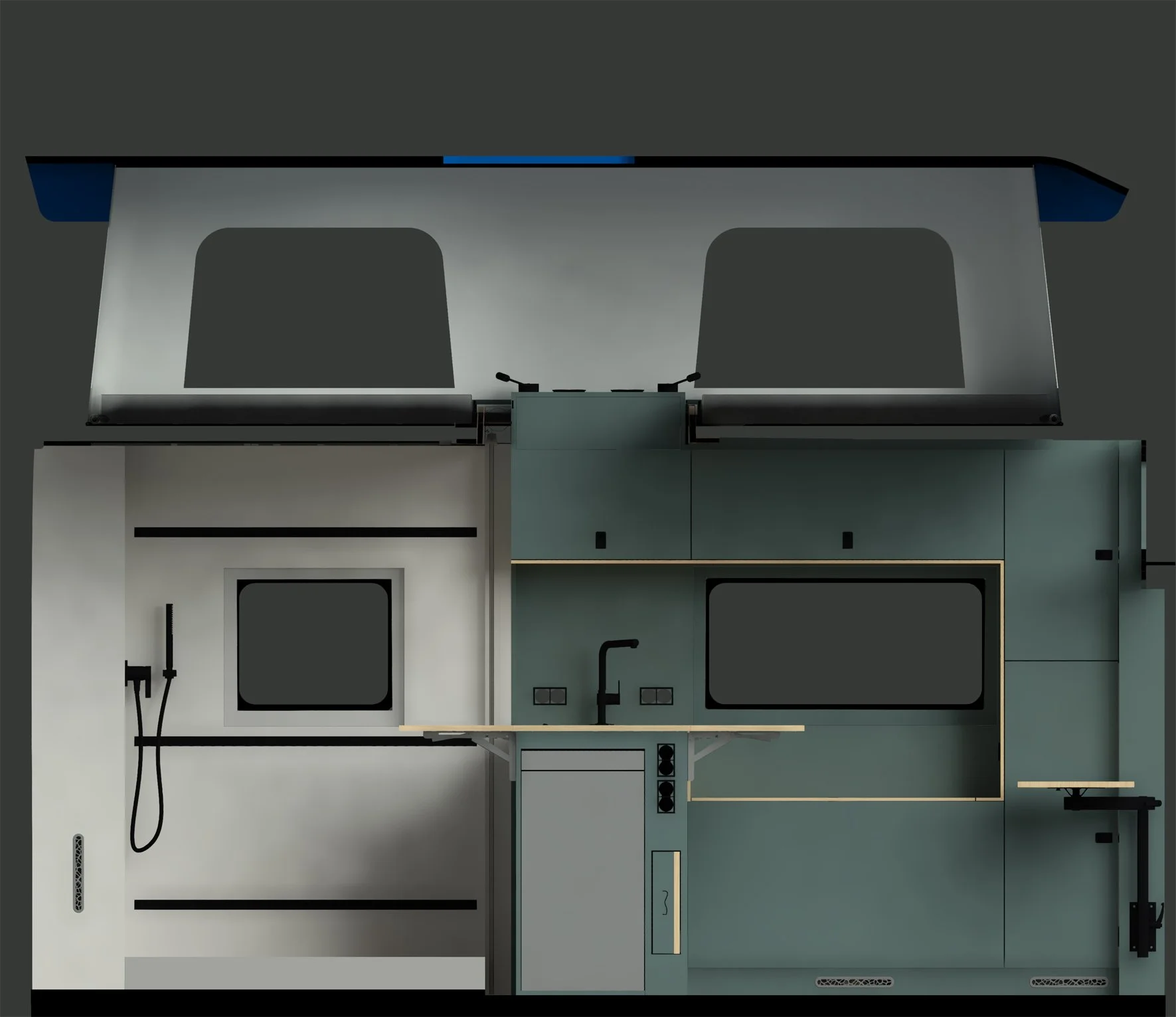

Interior Concept
Inside, the EpicoreVan breaks away from cramped camper clichés. It offers a sense of space, movement, and freedom — like stepping into a mobile studio or basecamp rather than a conventional RV. Natural materials meet clean industrial design to create a functional yet inviting environment that adapts to both downtime and full-on gear missions.
Technical Overview & Equipment
-
Vehicle dimensions: 6.4 m (L) / 2.25 m (W) / 3.25 m (H)
Base vehicle: IVECO Daily 4X4
Engine: F1C Euro 6D, 3.0L diesel, 180 HP
Transmission: 8-speed Hi-Matic automatic
Drive: All-wheel drive with front and rear axle differential locks
Wheelbase: 3480 mm
Gross vehicle weight: 7.0 t
Curb weight: 5.8 t
Suspension: Leaf springs with Marquart shock absorbers
Alternator: 220 A
Fuel tank capacity: 90 liters (diesel)t goes here
-
GFRP monocoque (35 mm double wall with integrated insulation)
Alcove above the driver’s cabin
Off-road capable subframe
Hydraulic tail lift (Bär Cargolift, 750 kg load capacity)
Hydraulic pop-up roof with integrated rooftop tent for 2–4 people
3 external storage compartments
Leveling support legs for balance on uneven groundxt goes here
Equipment
-
2 main seats + 2 additional individual seats (rotatable/slidable)
2 modular Lagun table mounts
Sleeping space for 2–4 people
2 mattresses (each 6 x 135 x 200 cm) in the pop-up roof,
with breathable spacer fabric underneath for ventilationInterior built from durable multiplex birch plywood with scratch-resistant HPL laminates and real wood veneer
-
Size: 1.7 x 2.0 x 1.9 m (loading volume > 6 m³)
4 m loading length
Stainless steel tray with removable rubber mat
Airline tracks on walls and ceiling for flexible mounting options
Partition with electric roller blind
(provides privacy and acts as a barrier against moisture, odors, and cold)Toilet: storage compartment with mobile dry separation toilettion
-
Battery: Wattstunde NOVA Core 480Ah / 6144Wh
Solar panels: Tigerexped 4 x 150Wp / 2 x MPPT solar charge controllers
Victron Energy inverter 3000W
Votronic 70A charge booster
Heating: 2x 2kW AUTOTERM AIR diesel air heaters
Separate heating circuits with individual controls
Rooftop tent heated via warm air channel
Power outlets for various 230V devices; USB A/C and USB-C Power ports
Dimmable LED strips on the ceiling of the garage and living space
Reading lamps in the rooftop tent
Wi-Fi onboard
-

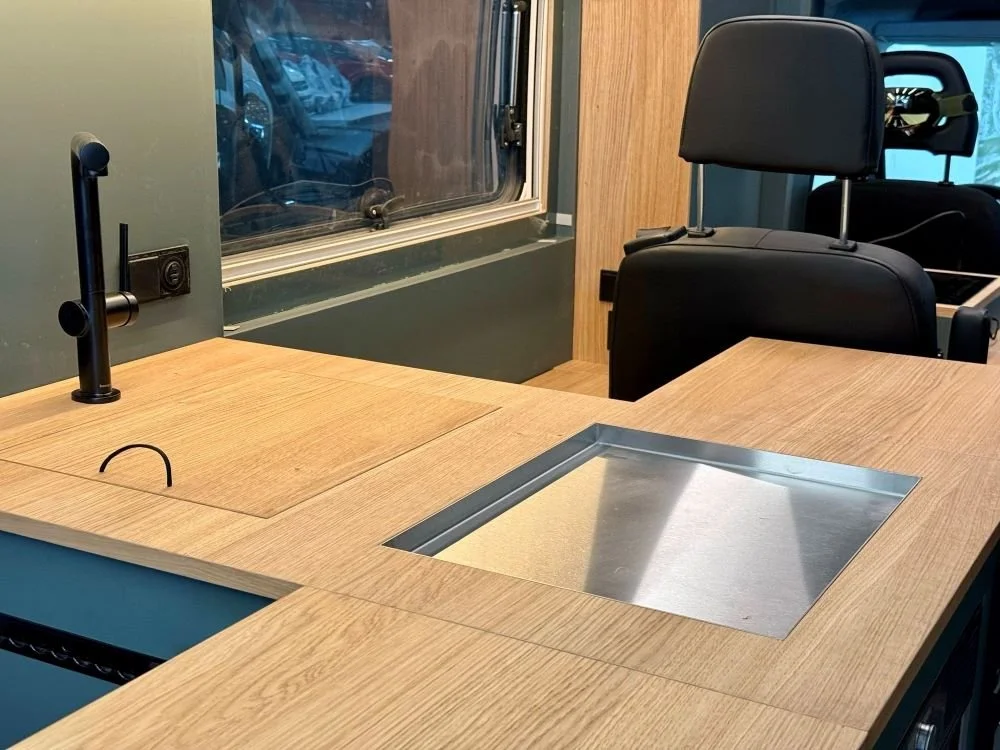

Central kitchen block / workbench for cooking, eating, washing, and DIY tasks
Usable from multiple sides
Expandable workspace with 2 fold-out side tables
Integrated stainless steel tray for tools
Stowable mobile induction cooktop
Refrigerator: Dometic RC 10.4T 70, compressor, 12V, 70L
Sink: Blanco Subline 320-U Silgranit
Kitchen faucet: Hansgrohe TALIS M54
-
220 L fresh water tank
120 L grey water tank
Full-size shower zone in the rear garage
Shower fitting: KEUCO IXMO Solo Black
Outdoor shower: Queensize Camper stainless steel fixture
Goodguards water purification system (activated carbon, lime absorber + UVC module)
Pressurized water system with pressure equalization tank
-
Revotion Smart Home system, central control via 10.9" iPad
Pop-up roof controllable via Revotion Two-Way System
Interior and exterior lighting controllable via Revotion
Tail lift operable from external control unit or remote control
Rearview camera
Rear camera viewable through the Revotion interface
Remote access to the entire Revotion system
Models & Sizes
The Epicore M is available in 3 different length. Whether you need less or more storage for your equipment, a different workspace-setup, additional seating - or you simply want more space to lounge in your Epicore - we will build the interior according to your needs and planned activities.
Contact us and configure your individual Epicore Action Van!
Coming Soon
After several requests, we are currently working on a lighter 3.5t Epicore-Version. Based on a MAN TGE 4x4 Vehicle - the concept of our Epicore will remain the same. Interested? Contact us in case you want to receive more information, pre-book your 3.5t-Epicore or get a message once it´s released.
gallery
Thinking about your own EpicoreVan?
Whether you're ready to order or want to explore your options, we’re here to guide you through every detail. Let’s build your adventure vehicle together!
